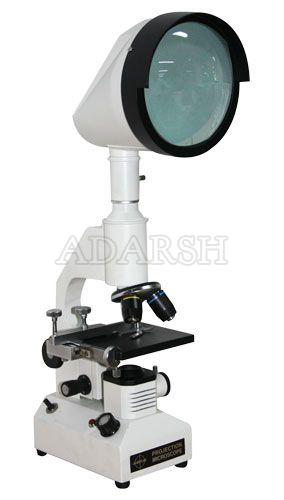

Projection Microscope

A greatly enlarged image of the specimen slide is projected on the screen, providing a high contrast, sharp and distortion free image. The microscope is highly suitable for group discussions as well as for teaching purposes.

Specification

• Stable and robust stand
• Monocular fixed straight tube body. Mechanical tube length 160 mm
• Separate knobs for coarse and fine focussing.
• Fixed square stage 110 x 110 mm with graduated detachable mechanical stage.
• Triple revolving nose-piece with click stops and positive centering.
• Fixed built-in Abbe condenser NA 0.65.Illumination by 6V 20 W halogen lamp with solid state variable light control knob for adjusting the intensity.Grainless, optically true circular glass projection screen rotatable through 360° on microscope tube.
• Eyepiece : Huygenian x10.
• Objectives : Achromatic: x5, x10, x20.
