Venturimeter Orificemeter Calibration Set Up


Venturimeter Orificemeter Calibration Set Up

Specifications

Size 11x11x6, 13x13x7, 15x15x8x17x17x9, 19x19x10, 21x21x11, 23x23x13, 25x25x14
Type Make Up Set
Material Plastic, Sheesham Wood, Teak Wood
Shape Rectangular
Use Cosmetics Items, Crate
Style Antique
Color Multi Colour
Feature Fine Polishing, Good Quality Stylish
Pattern Plain
Finishing Polished

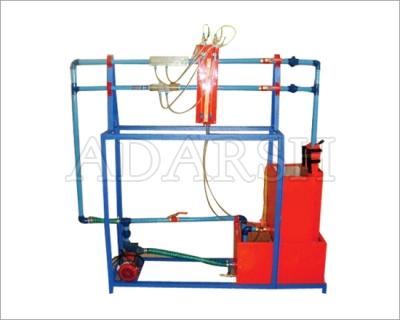

The apparatus consists of two pipelines emerging out from a common manifold. One pipeline contain a Venturimeter, second contains an Orifice. The pressure tapings from the Venturimeter and Orificemeter are taken to differential manometer to measure pressure difference. The Venturimeter and Orificemeter are connected in parallel and anyone of them can be put in operation by operating valves provided at the downstream. These valves can also regulate the flow.
