Laboratory Microscopes

• 45Deg. Inclined Binocular Tubes
• Magnification: 5x, 10x & 20x (Three Step Magnification)
• Working distance: f=200mm Objective Lens
• Focusing: Mannual
• Illumination Control: Direct LED 50 W
• Illumination control: Continuos Adjustment
• Type: Table Clamp

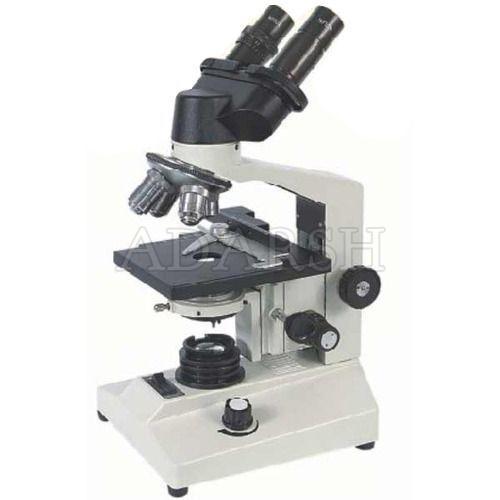

Specification :

• Frame : All aluminum pressure diecasted body
• Paint : P.U. coating in light cream shade
• Nose piece : Quadruple ball bearing nosepiece.
• Binocular head : 360° rotateable & 45° inclined head with anti-fungus coated prisms
• Focusing system : Seprate coarse & fine focusing adjustment, with slide protection lock
• Availability : Co-Axial coarse & fine focusing also available
• Mechanical stage : Ball bearing double plate mechanical stage for smooth functioning
• Condenser : Bright field sub stage condenser having 1.2 N.A.
• Illumination : LED 3W with battery backup or 6V, 2Ww halogen lamp along with intensity control
• Eyepieces & objectives : Set of 4x, 10x, 40x, and 100x oil-immersion objectives and a paired set of 10x wide field anti fungus eyepiece

Note : Monocular Microscope (with Mono Head) also available.

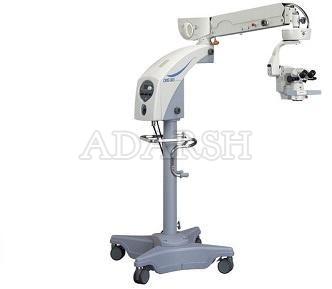

Features

• Double focusing mechanism
• Programmable multi-function footswitch
• Electromagnetic locks
• Suitable for all types of ophthalmic surgery
• Space-saving design provides large working area
• Easy illumination bulb exchange allows the spare lamp to be immediately rotated into position if the main lamp fails.

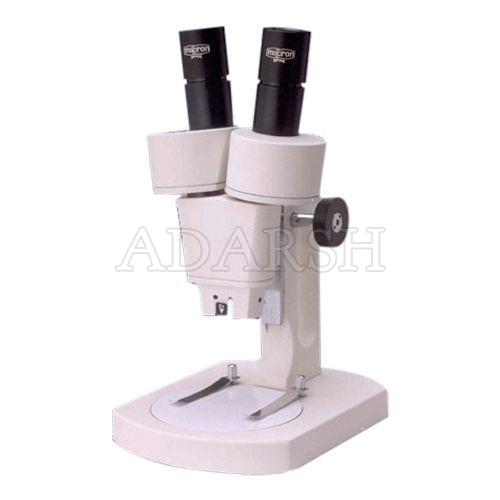

Specifications :

• Objective Lens : 1x & 2x.
• Eyepiece Lens : WF 10x/20mm (or 15x on request) (Paired)
• Magnification : 10x or 20x (15x or 30x with 15x eye piece)
• Binocular Viewing : Head Straight
• Base : Plane base with black & white disc with stage clip
• Coarse Movement : On Rack & Pinion
• Packing : Packed in Styrofoam Box or Wooden Box (Optional)

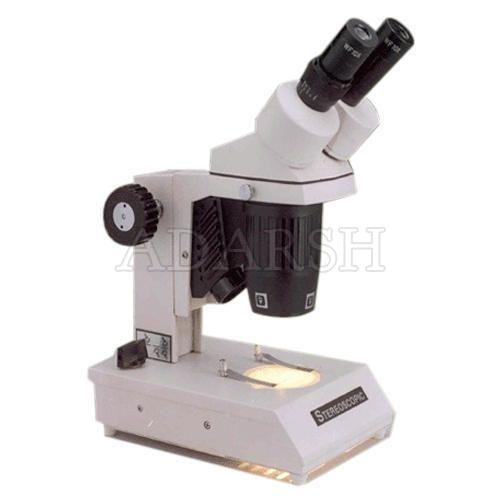

Magnification : 20x & 40x or 30x and 60x

Eyepiece Lens : Wide Field 10x or 15x Paired Eyepiece

Objective : 2x and 4x (Turret Type Revolving)

Focusing : Vertical movement with rack & pinion, Tension control knob & stroke 50 mm

Inclination : 45°

Tube Rotation : 360° Rotatable, Removable

Binocular Viewing Head : 45 degree Inclined

Coarse Movement : On Rack and Pinion

Incident Lignt : Built in Illumination Incident Lignt, 6v-20w Tungeston Lamp

Packing : Incident Lignt

Accessories : Rubber Eye Guard, LED Light Illuminator or Flurescent Ring Illuminator

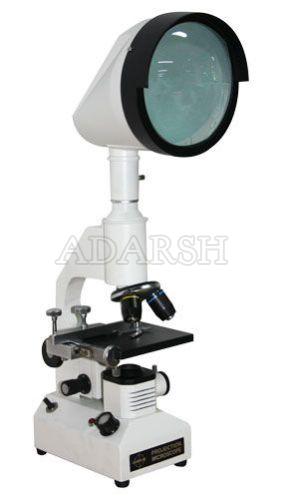

A greatly enlarged image of the specimen slide is projected on the screen, providing a high contrast, sharp and distortion free image. The microscope is highly suitable for group discussions as well as for teaching purposes.

Specification

• Stable and robust stand
• Monocular fixed straight tube body. Mechanical tube length 160 mm
• Separate knobs for coarse and fine focussing.
• Fixed square stage 110 x 110 mm with graduated detachable mechanical stage.
• Triple revolving nose-piece with click stops and positive centering.
• Fixed built-in Abbe condenser NA 0.65.Illumination by 6V 20 W halogen lamp with solid state variable light control knob for adjusting the intensity.Grainless, optically true circular glass projection screen rotatable through 360° on microscope tube.
• Eyepiece : Huygenian x10.
• Objectives : Achromatic: x5, x10, x20.

Specification :

• Viewing Head : Trinocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Digital Camera or Digital Screen can be to the trinocular head
• Eyepiece : Paired Wide Field 10x, WF 15x
• Nosepiece : Quadruple Nosepiece
• Achromatic Objectives : 4x, 10x, 40x (SL), 100x (SL, Oil Immersion)
• Stage : Stage is fitted with co-axial mechanical stage
• Focusing : Coaxial coarse & fine focus knob
• Illumination : LED Illumination with adjustable intensity.
• Condenser : Two lens abbe condenser NA 1.25 with iris diaphragm, filter holder and blue filter, movable by rack and pinion mechanism
